Home > Products > Bare Conductor & Overhead Cable > Standard 4 Core ABC Aerial bundled cable

Standard 4 Core ABC Aerial bundled cable

Share to:
    Unit Price: USD 0.8 / Meter
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
    Min. Order: 500 Meter
    Delivery Time: 15 Days
  • Mr. Ryan Li

Basic Info

Application: Car, Computer, Telecommunication, Power Station, Industrial, Underground, Overhead, Construction

Voltage: Low and Medium Voltage Cable

Current: DC & AC

Insulation Material: XLPE

Sheath Material: PVC

Material Shape: Round Wire

Wire Core Material: Bare Copper Wire

Certification: CE, CCC, ISO

Model: YJLV22

Additional Info

Packaging:  In coils, wooden drums, steel drums or steel-wooden drums. We could producing according to the customers' requirements.

Brand: yuxin

Transportation: Ocean,Land

Place of Origin: Yingxing Jiangsu

Supply Ability: 200000

Certificate: iso9001/iso14001/IEC/CCC

Product Description

NFC 33-209 Standard 4 Core 4x25mm2 4x35mm2 ABC Aerial bundled cable

Quick Details

Place of Origin:
China (Mainland)
Brand Name:
yuxin
Model Number:
abc cable
Insulation Material:
XLPE
Type:
Low Voltage
Application:
Overhead
Conductor Material:
Aluminum
Jacket:
None
Certificate:
CE, CCC,ISO9001certification
Color:
as customer requirement
Conductor Type:
Stranded
Company nature:
Manufactury for ABC cable
Name:
Power tansmission stranded aluminum 4*16mm2 abc cable
Packaging & Delivery

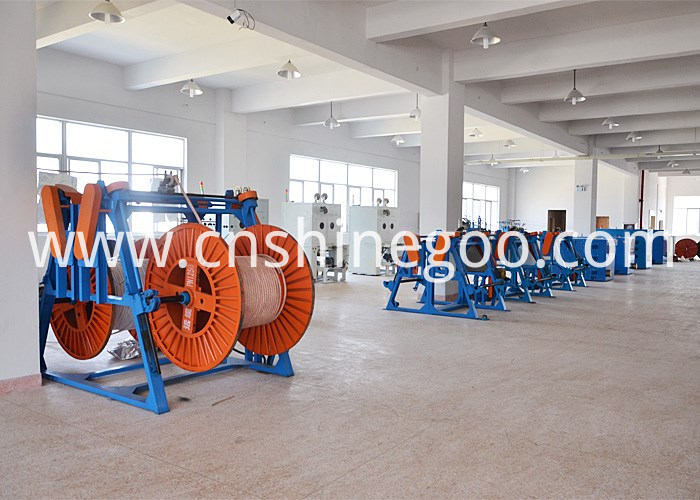

factory (1)
Packaging Details: ABC cable Aerial bundled overhead cable should be supplied in steel/wooden drum.
Delivery Detail: 10-30 working days after receiving the down payment

NFC 33-209 Standard 4 Core 4x25mm2 4x35mm2 ABC Aerial bundled cable

Product Description
Application
ABC cable Aerial bundled overhead cable is used to supply 3 phase power, usually from a pole- mounted Transformer, to the user's service head where connect to the service entrance cable. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for PE insulated Conductors or 90°C for crosslinked polyethylene (XLPE) insulated conductors.

Structure of ABC cable
1. Material: Aluminium, copper
2. Type: LJ, LGJ, LGJF, JL, JLHA, JL/G, JLHA/G, JL/LHA, JL/LB, JLHA/LB, JG, JLB.
3. Rated Voltage: 0./1 kV, 10kV, 35kV.
4. No. of cores: 1, 2, 3, 4, 3+k(A), 3+k(B).
5. Standard: GB/T12527 GB/T14049 or other.
6. Insulation: PVC, PE, xlpe
7. Sheath:PVC, PE, XLPE
8. Application: applying in cable fixed aerial laying or used as wire leading into user's premises.
9. Nominal cross section area: from 10 mm2 to 710mm2.


Model and Specification of abc cable
abc cables
Aerial Bundled Cable, ABC Cable, Overhead cable
Voltage
0.6/1kV
Cores
1, 2, 3, 4, 5, 6
Range of Nominal cross section
10 mm2 - 300 mm2
Application
A new type of abc cable for power transmitting. It is extensively used in overhead power transmission line.
Standard
NF C 33-209, IEC, BS, SABS, ASTM
Constructions
Conductor:
Aluminium, Alloy Aluminium, ACSR
Insulation:
XLPE, PE
Size
2 x 16 mm2
3×25 mm2+54.6 mm2+16 mm2
2 x 25 mm2
3×35 mm2+54.6 mm2+16 mm2
2 x 35 mm2
3×50 mm2+54.6 mm2+16 mm2
2 x 50mm2
3×70 mm2+54.6 mm2+16 mm2
4 x 16 mm2
3×70 mm2+70 mm2+16 mm2
4 x 25 mm2
3×95 mm2+70 mm2+16 mm2
4 x 35 mm2
3×120 mm2+70 mm2+16 mm2
Max. Operating Temperature
90
Packing
Steel drum or as per requirement
Remark
ABC cable can be of flame retardance, fire resistance, environment friendly or other property

Specification of 4 core ABC cable
abc cables
w 35kV St

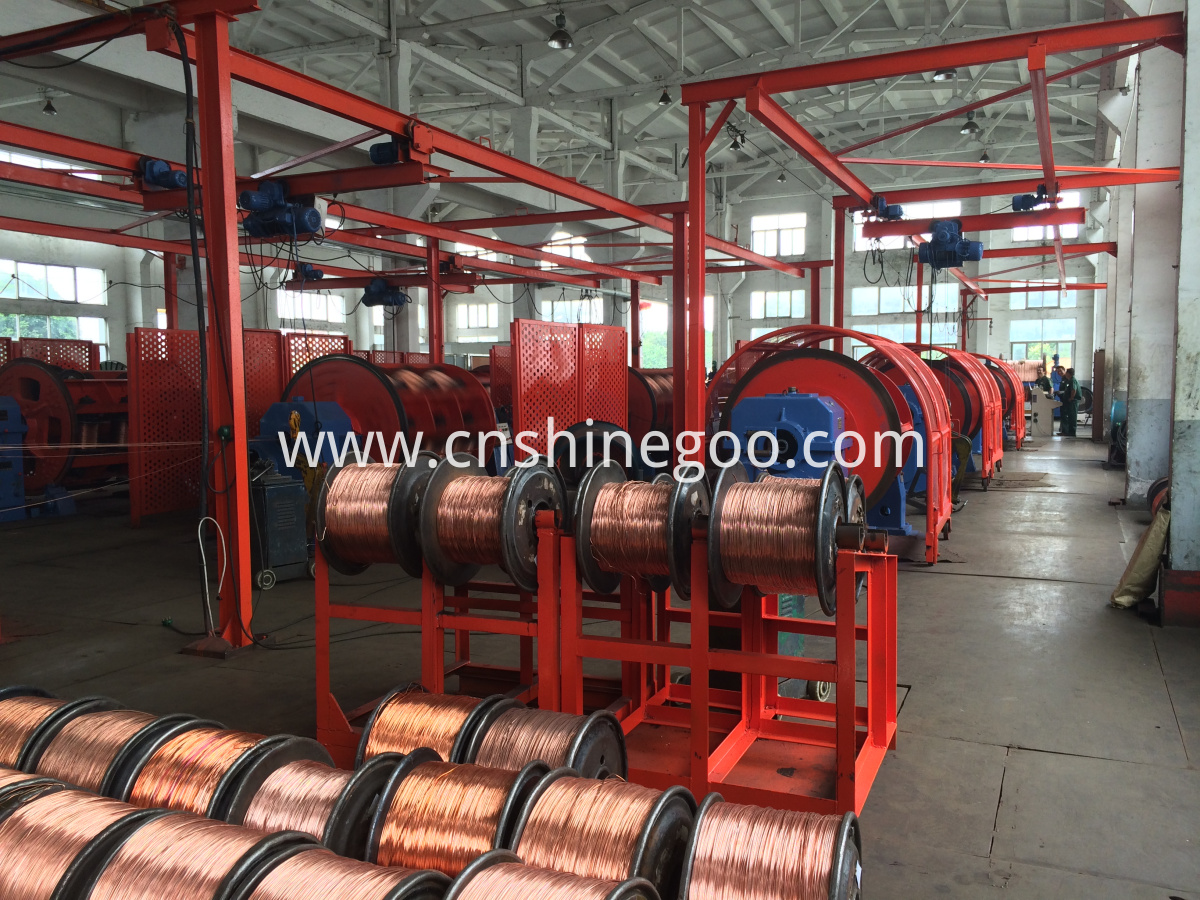

factory (4)
abc cable
eel
Packaging & Shipping
Packing : ABC Aerial bundled cable should be supplied in steel/wooden drum. Cable piece length should be of 500meter length or as specified by the customer at the time of order.
Shipping : Within 15 working days after confirming the detailed information for abc cable
HTB1GlTUGpXXXXXbXVXXq6xXFXXXn

Certificate
HTB1sI4RGpXXXXXaapXXq6xXFXXXV

Looking for ideal Aluminum Conductor Cable Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Overhead Power Cables are quality guaranteed. We are China Origin Factory of Overhead Insulated Cable. If you have any question, please feel free to contact us.

Product Categories : Bare Conductor & Overhead Cable
